Stackable Wedge Beam Splitters
Stackable Wedge Beam Splitters
The stackable beam splitters are designed for maximum modularity and shortest beam path. They are compatible with almost all of our cameras having the standard C mount thread and can mount either to other attenuators or to the camera itself.
- Maximum modularity
- Shortest beam path
- Compatible with most of our cameras See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | SPZ170151st Wedge Beam Splitter1st Wedge Beam Splitter, Ø15 mm, 193-2500 nm | |||||

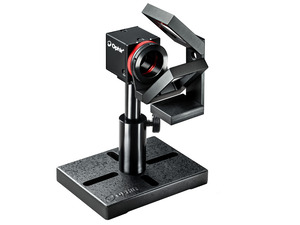

 | SPZ170262nd Wedge Beam Splitter2nd Wedge Beam Splitter, Ø15 mm, 193-2500 nm | |||||

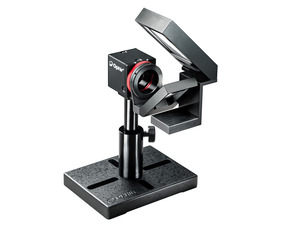

 | SPZ17025Large Aperture Wedge Beam Splitter2nd Wedge Beam Splitter, Large Aperture, Ø30 mm, 193-2500 nm | |||||
 | SPZ170311st Wedge Beam Splitter1st Wedge Beam Splitter, Ø15 mm, 1064 nm | |||||
| SPZ170322nd Wedge Beam Splitter2nd Wedge Beam Splitter, Ø15 mm, 1064 nm |
Specifications
- Spectral Range190-2000 nm
- Reflection≤6% (BB), ≤1% (NIR)
- Damage Threshold>5 J/cm² for 10ns pulses
- MaterialUV-Grade Fused Silica
- InterfaceC-mount
