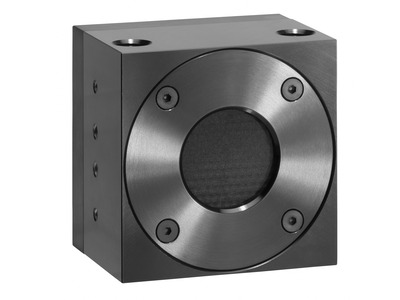

60 mW to 150 W OEM Thermopile Laser Power Sensors

These compact OEM thermopile sensors are for measuring laser power from 60 mW to 150 W

Sensors come with threaded holes for mounting to host system
Up to 150 W laser power measurement
Compact design

Description	Compatibility	Maximum Average Power	Aperture Size	Communication	Minimum Power	Spectral Range	Avail.	Price
7Z07126100C-BB-18-SHOEM Thermopile Power Sensor, 60 mW to 4/100 W, Ø18 mm, 0.19-11 µm	UNIVERSAL	100 W heat sinked	Ø18 mm		60 mW	0.19-11 µm	Contact Us	$975
L30C-UAFL30C-UAFOEM Thermopile Power Sensor, 300 mW to 10/100 W, Ø26 mm, 0.19-20 µm, RS232	UNIVERSAL	100 W heat sinked	Ø26 mm	RS232, Analog	300 mW	0.19-20 µm	Contact Us
L30C-UAUL30C-UAUOEM Thermopile Power Sensor, 300 mW to 10/100 W, Ø26 mm, 0.19-20 µm, USB	UNIVERSAL	100 W heat sinked	Ø26 mm	USB	300 mW	0.19-20 µm	Contact Us
L30C-UAEL30C-UAEOEM Thermopile Power Sensor, 300 mW to 10/100 W, Ø26 mm, 0.19-20 µm, Ethernet	UNIVERSAL	100 W heat sinked	Ø26 mm	Ethernet	300 mW	0.19-20 µm	Contact Us
773434L30C-SHOEM Thermopile Power Sensor, 300 mW to 10/100 W, Ø26 mm, 0.19-20 µm	UNIVERSAL	100 W heat sinked	Ø26 mm		300 mW	0.19-20 µm	Contact Us	$1,218
7N77023150C-SHOEM Thermopile Power Sensor, 60 mW to 5/150 W, 18 mm, 0.19-20 µm	UNIVERSAL	150 W for 1 min free standing	Ø18 mm		60 mW	0.19-20 µm	Contact Us	$1,032
100C-UAF100C-UAFOEM Thermopile Power Sensor, 60 mW to 4/100 W, Ø18 mm, 0.19-20 µm, RS232	UNIVERSAL	100 W heat sinked	Ø18 mm	RS232, Analog	60 mW	0.19-11 µm	Contact Us
100C-UAU100C-UAUOEM Thermopile Power Sensor, 60 mW to 4/100 W, Ø18 mm, 0.19-20 µm, USB	UNIVERSAL	100 W heat sinked	Ø18 mm	USB	60 mW	0.19-11 µm	Contact Us
100C-UAE100C-UAEOEM Thermopile Power Sensor, 60 mW to 4/100 W, Ø18 mm, 0.19-20 µm, Ethernet	UNIVERSAL	100 W heat sinked	Ø18 mm	Ethernet	60 mW	0.19-11 µm	Contact Us
771001150W-SHOEM Thermopile Power Sensor, 0.1-150 W, 18 mm, 0.19-20 µm, Water-Cooled	UNIVERSAL	150 W water cooled free standing	Ø18 mm		100 mW	0.19-20 µm	Contact Us	$1,122
7Z02775L30C-LP2-26-SHOEM Thermopile Power Sensor, 300 mW to 10/100 W, Ø26 mm, 250-2200 nm, LP2	UNIVERSAL	100 W heat sinked	Ø26 mm		300 mW	250-2200 nm	Contact Us	$1,602
150C-UAF150C-UAFOEM Thermopile Power Sensor, 60 mW to 5/150 W, 18 mm, 0.19-20 µm, RS232	UNIVERSAL	150 W for 1 min free standing	Ø18 mm	RS232, Analog	60 mW	0.19-20 µm	Contact Us
150C-UAU150C-UAUOEM Thermopile Power Sensor, 60 mW to 5/150 W, 18 mm, 0.19-20 µm, USB	UNIVERSAL	150 W for 1 min free standing	Ø18 mm	USB	60 mW	0.19-20 µm	Contact Us
150C-UAE150C-UAEOEM Thermopile Power Sensor, 60 mW to 5/150 W, 18 mm, 0.19-20 µm, Ethernet	UNIVERSAL	150 W for 1 min free standing	Ø18 mm	Ethernet	60 mW	0.19-20 µm	Contact Us
150W-UAF150W-UAFOEM Thermopile Power Sensor, 0.1-150 W, 18 mm, 0.19-20 µm, Water-Cooled, RS232	UNIVERSAL	150 W water cooled free standing	Ø18 mm	RS232, Analog	100 mW	0.19-20 µm	Contact Us
150W-UAU150W-UAUOEM Thermopile Power Sensor, 0.1-150 W, 18 mm, 0.19-20 µm, Water-Cooled, USB	UNIVERSAL	150 W water cooled free standing	Ø18 mm	USB	100 mW	0.19-20 µm	Contact Us
150W-UAE150W-UAEOEM Thermopile Power Sensor, 0.1-150 W, 18 mm, 0.19-20 µm, Water-Cooled, Ethernet	UNIVERSAL	150 W water cooled free standing	Ø18 mm	Ethernet	100 mW	0.19-20 µm	Contact Us
L150C-UAFL150C-UAFOEM Thermopile Power Sensor, 0.2-20/150 W, 50 mm, 0.19-20 µm, RS232	UNIVERSAL	150 W heat sinked	Ø50 mm	RS232, Analog	200 mW	0.19-20 µm	Contact Us
L150C-UAUL150C-UAUOEM Thermopile Power Sensor, 0.2-20/150 W, 50 mm, 0.19-20 µm, USB	UNIVERSAL	150 W heat sinked	Ø50 mm	USB	200 mW	0.19-20 µm	Contact Us
L150C-UAEL150C-UAEOEM Thermopile Power Sensor, 0.2-20/150 W, 50 mm, 0.19-20 µm, Ethernet	UNIVERSAL	150 W heat sinked	Ø50 mm	Ethernet	200 mW	0.19-20 µm	Contact Us

Show Less

Features

OEM Laser Power Meter and Sensor

In this video, Jimmy Green, Ophir OEM Specialist, explains how Ophir can solve laser measurement challenges if a solution cannot be found from the hundreds of products in our catalog.

Cooling of OEM Sensors: Heat Sinking

Many of Ophir’s OEM power sensors have a maximum average power specification of “XX watts free standing, YY watts heat sinked.” In this video, you will learn some guidelines for making sure that a sensor has been provided with proper heat sinking so it does not get damaged.

Customized OEM Sensors with Ethernet Interface

Do you need to integrate a customized sensor into your system? Learn about Ophir’s new “UAE” family of sensors with an Ethernet interface, for OEM applications.

Clarifications: Range Selection, Measurement Duration

Sometimes, even experienced users of laser measurement equipment come across some issues that, although basic, need to be clarified. This video reviews 2 such issues: (1) selection of correct range when it's not quite obvious (and what happens if one goes over range), and (2) how long a measurement duration may be.

Frequently Asked Questions

What is the dynamic range of OEM sensors?
Answer
In general, the dynamic range over a given range, i.e. the ratio of maximum useable power to minimum useable power of Ophir thermal OEM sensors is 40:1. If greater dynamic range is desired, Ophir OEM RS232 sensors are available with several selectable ranges.
Sensor Finder does not find a match for my application. Is there the possibility to create an OEM sensor for my application?
Answer
Yes, we have the ability to rapid prototype standard OEM sensors to help with custom applications where an off the shelf sensor does not fill the requirement.
Do I need to recalibrate my instrument? How often must it be recalibrated?
Answer
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.
