300 mW to 600 W OEM Thermopile Laser Power Sensors
300 mW to 600 W OEM Thermopile Laser Power Sensors
These compact OEM thermopile sensors are for measuring laser power from 300 mW to 600 W
- Sensors come with threaded holes for mounting to host system
- Up to 600 W laser power measurement
- Compact design See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

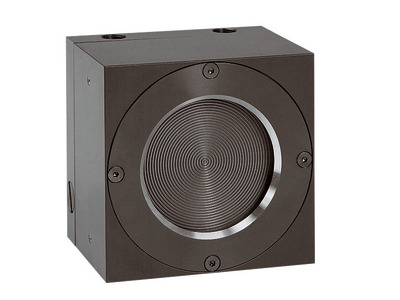

 | L250W-UAFL250W-UAFOEM Thermopile Power Sensor, 0.3-250 W, 50 mm, 0.19-20 µm, Water-Coooled, RS232 | |||||
| L250W-UAUL250W-UAUOEM Thermopile Power Sensor, 0.3-250 W, 50 mm, 0.19-20 µm, Water-Coooled, USB | |||||
| L250W-UAEL250W-UAEOEM Thermopile Power Sensor, 0.3-250 W, 50 mm, 0.19-20 µm, Water-Coooled, Ethernet | |||||

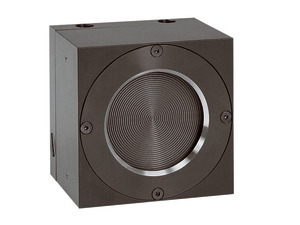

| L300W-UAFL300W-UAFOEM Thermopile Power Sensor, 0.5-300 W, 50 mm, 0.19-20 µm, Water-Coooled, RS232 | |||||
| L300W-UAUL300W-UAUOEM Thermopile Power Sensor, 0.5-300 W, 50 mm, 0.19-20 µm, Water-Coooled, USB | |||||
 | L300W-UAEL300W-UAEOEM Thermopile Power Sensor, 0.5-300 W, 50 mm, 0.19-20 µm, Water-Coooled, Ethernet | |||||

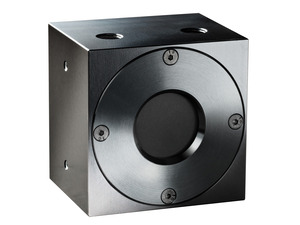

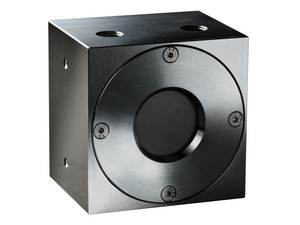

 | 600W-UAF600W-UAFOEM Thermopile Power Sensor, 5-600 W, 26 mm, 350-2200 nm, Water-Coooled, RS232 | |||||
 | 600W-UAU600W-UAUOEM Thermopile Power Sensor, 5-600 W, 26 mm, 350-2200 nm, Water-Coooled, USB | |||||
 | 600W-UAE600W-UAEOEM Thermopile Power Sensor, 5-600 W, 26 mm, 350-2200 nm, Water-Coooled, Ethernet |
Features
OEM Laser Power Meter and Sensor
In this video, Jimmy Green, Ophir OEM Specialist, explains how Ophir can solve laser measurement challenges if a solution cannot be found from the hundreds of products in our catalog.
Cooling of OEM Sensors: Heat Sinking
Many of Ophir’s OEM power sensors have a maximum average power specification of “XX watts free standing, YY watts heat sinked.” In this video, you will learn some guidelines for making sure that a sensor has been provided with proper heat sinking so it does not get damaged.
Customized OEM Sensors with Ethernet Interface
Do you need to integrate a customized sensor into your system? Learn about Ophir’s new “UAE” family of sensors with an Ethernet interface, for OEM applications.
Clarifications: Range Selection, Measurement Duration
Sometimes, even experienced users of laser measurement equipment come across some issues that, although basic, need to be clarified. This video reviews 2 such issues: (1) selection of correct range when it's not quite obvious (and what happens if one goes over range), and (2) how long a measurement duration may be.
Frequently Asked Questions
- Do I need to recalibrate my instrument? How often must it be recalibrated?Answer
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.
- Sensor Finder does not find a match for my application. Is there the possibility to create an OEM sensor for my application?Answer
Yes, we have the ability to rapid prototype standard OEM sensors to help with custom applications where an off the shelf sensor does not fill the requirement.
- What is the dynamic range of OEM sensors?Answer
In general, the dynamic range over a given range, i.e. the ratio of maximum useable power to minimum useable power of Ophir thermal OEM sensors is 40:1. If greater dynamic range is desired, Ophir OEM RS232 sensors are available with several selectable ranges.
Resources
Data Sheets
Standard Customized Solutions (OEM) Thermal Sensors 0.2W to 600W Datasheet(1.4 MB, PDF) Customized Sensor Solutions(155.6 kB, PDF)
Catalogs
OEM Sensors Catalog(4.4 MB, PDF) Power Sensors Catalog(11.2 MB, PDF) Laser Power & Energy Measurement and Laser Beam Analysis Catalog(27.5 MB, PDF)
Drawings & CAD
L250W-UAF & L300W-UAF Drawing(183.4 kB, PDF) L250W-UAE & L300W-UAE Drawing(168.7 kB, PDF) L250W-UAU & L300W-UAU Drawing(163.4 kB, PDF) 600W-UAF Drawing(154.5 kB, PDF) 600W-UAE Drawing(212 kB, PDF) 600W-UAU Drawing(178.9 kB, PDF)
