BeamWatch Integrated Non-Contact Beam Profiler System, 500 mm, 980-1080 nm, CC-Link

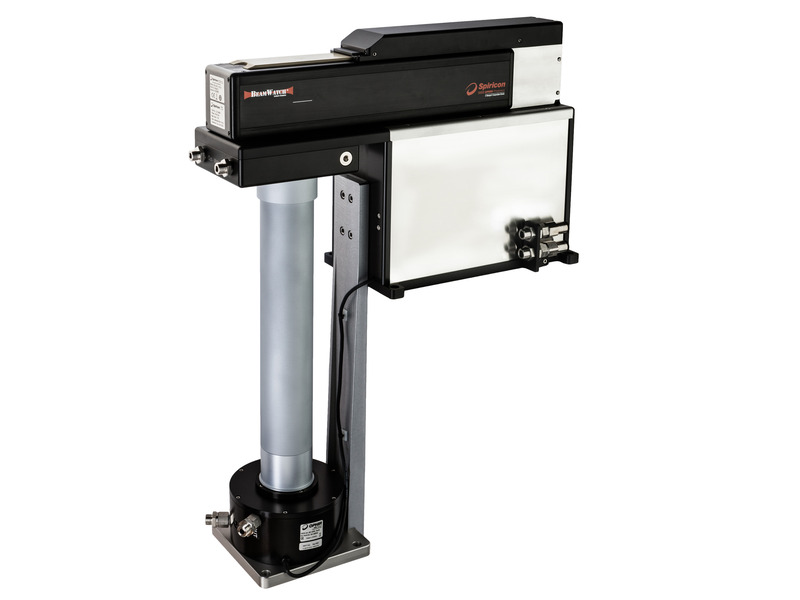

BeamWatch® Integrated 500 Caustic and Power Laser Measurement System

BeamWatch Integrated Non-Contact Beam Profiler System, 500 mm, 980-1080 nm, CC-Link

The BW-Integrated-500-NIR-155-CC-Link (P/N SP90538) is a fully automated laser measurement system designed to integrate the measurement of critical laser beam parameters on industrial production lines using GigE or CC-Link communication. Based on BeamWatch’s patented, non-contact profiling principle, BeamWatch Integrated offers contactless and simultaneous measurement of all critical laser beam parameters in real time, while its built-in power meter delivers absolute power readings.

Specifications

Technical Specs

Spectral Range
980-1080 nm
Power Range
500-9999 W
Maximum Beam Diameter at Entrance/Exit
12.5 mm
Focus to Power Meter Distance
500 mm
Power Meter Calibration
NIST traceable ±3%
Beam Profiling
ISO 11146 Measurements

Communication
CC-Link
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes

Spectral Range
980-1080 nm
Power Range
500-9999 W
Maximum Beam Diameter at Entrance/Exit
12.5 mm
Focus to Power Meter Distance
500 mm
Power Meter Calibration
NIST traceable ±3%
Beam Profiling
ISO 11146 Measurements

Communication
CC-Link
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes

Resources & Downloads

3D Product Models

Drawings & CAD

BeamWatch Integrated 500 Drawing(331.9 kB, PDF)

Data Sheets

BeamWatch® Integrated 500 Datasheet(269.9 kB, PDF)
