1-1-uv-image-converter

1:1 UV Image Converter for Beam Profilers

Specifications

Technical Specs

Spectral Range
193-360 nm
Damage Threshold
100 W/cm², 2 J/cm² with beam splitter
Clear Aperture
Ø18 mm
Reduction Ratio
1:1 imaging ±2% with included correction factor

Interface
C-mount

Spectral Range
193-360 nm
Damage Threshold
100 W/cm², 2 J/cm² with beam splitter
Clear Aperture
Ø18 mm
Reduction Ratio
1:1 imaging ±2% with included correction factor

Interface
C-mount

Resources & Downloads

Data Sheets

Imaging UV lasers Datasheet(175.2 kB, PDF)

Technical Articles

Manuals

1X UV Image Converter(240.8 kB, PDF)

Related Products

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

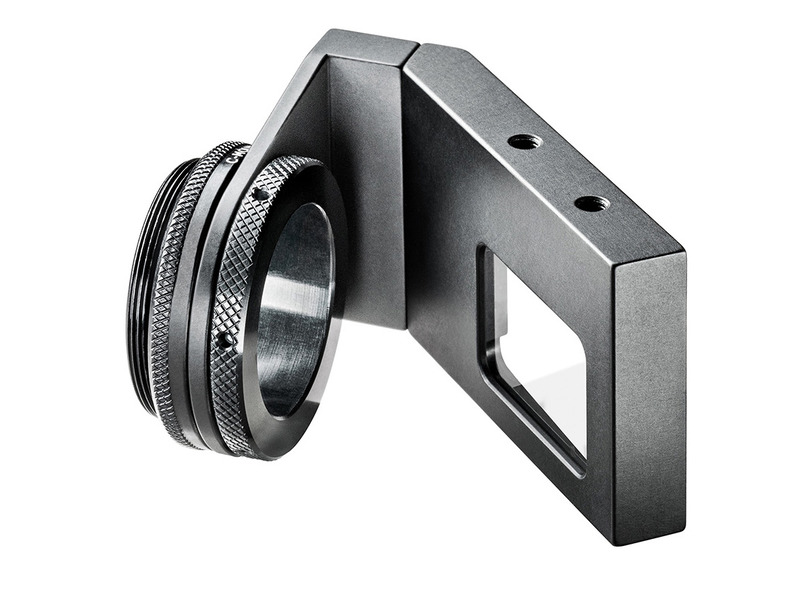

		SPZ170151st Wedge Beam Splitter1st Wedge Beam Splitter, Ø15 mm, 193-2500 nm	UNIVERSAL			$744
		lbs-300s-beam-splitterLBS-300s Beam Splitter for Laser Beam Profilers	UNIVERSAL
