1 µJ to 40 J OEM Pyroelectric Laser Energy Sensors

Our OEM “standard” sensors are actually families of existing OEM sensors with typical specifications shown. They can be tailored as needed to fit your specific requirements. In addition to the products described, Ophir has developed hundreds of other OEM solutions.

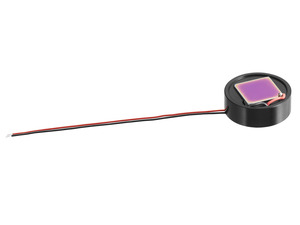

Compact pyro sensors with no electronics

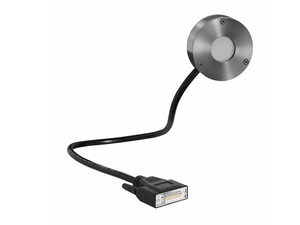

Pyroelectric sensors with RS232 or analog output
Compact smart plug PE-C sensors

See All Features

Description	Compatibility	Aperture Size	Spectral Range	Minimum Pulse Energy	Avail.
PE-C-REPE-C-REOEM Pyroelectric Energy Sensor, PE-C Series, Ø10 mm, 0.19-10.6 µm	UNIVERSAL	Ø10 mm	0.19–10.6 µm		Contact Us
PE10-C-REPE10-C-REOEM Pyroelectric Energy Sensor, from 1 µJ, Ø12 mm, 0.19-10.6 µm	UNIVERSAL	Ø12 mm	0.19-10.6 µm	1 µJ	Contact Us
PEXX-C-RS232PEXX-C-RS232OEM Pyroelectric Energy Sensor, PE-C Series, RS232 or Analog Output	UNIVERSAL				Contact Us

Features

Overview of Ophir Pyro OEM Sensors

Do you need an energy sensor integrated inside your system? This video will give you an overview of the range of OEM energy sensor options available.

OEM Laser Power Meter and Sensor

In this video, Jimmy Green, Ophir OEM Specialist, explains how Ophir can solve laser measurement challenges if a solution cannot be found from the hundreds of products in our catalog.

Clarifications: Range Selection, Measurement Duration

Sometimes, even experienced users of laser measurement equipment come across some issues that, although basic, need to be clarified. This video reviews 2 such issues: (1) selection of correct range when it's not quite obvious (and what happens if one goes over range), and (2) how long a measurement duration may be.

Frequently Asked Questions

Sensor Finder does not find a match for my application. Is there the possibility to create an OEM sensor for my application?
Answer
Yes, we have the ability to rapid prototype standard OEM sensors to help with custom applications where an off the shelf sensor does not fill the requirement.
What is the dynamic range of OEM sensors?
Answer
In general, the dynamic range over a given range, i.e. the ratio of maximum useable power to minimum useable power of Ophir thermal OEM sensors is 40:1. If greater dynamic range is desired, Ophir OEM RS232 sensors are available with several selectable ranges.
Do I need to recalibrate my instrument? How often must it be recalibrated?
Answer
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.
